Protective Booms

Project Description

Security

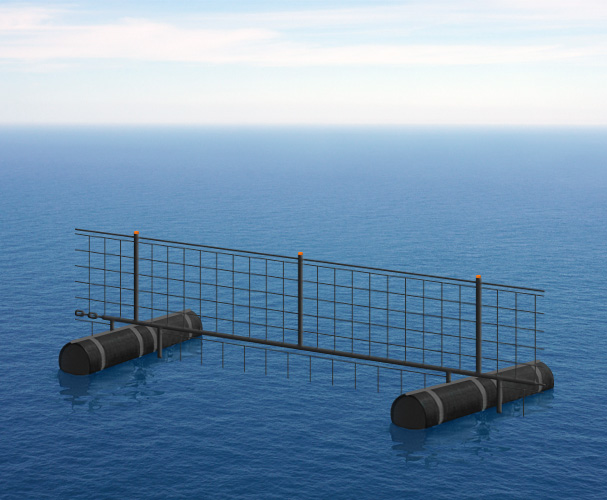

Strategic Floating Security Barriers are advanced modular systems engineered to safeguard critical maritime facilities against water drone threats. Each module is identical and interchangeable, facilitating straightforward replacement during maintenance or in the event of damage.

Design Features

Robust Outer Frame:
  • Constructed from H-beams, the frame offers exceptional rigidity and resistance to wave-induced forces and sudden wind gusts.
  • Critical joints are reinforced with stiffeners and where necessary, spacers to enhance stability at connection points.
  • All frame and float connections utilize high-strength bolted joints, employing corrosion-resistant stainless steel hardware of class A2.
  • A central steel I-beam endures significant torsional and bending stresses, ensuring even distribution of tensile loads along each barrier section.

Dual Floating Elements:
  • Attached to both sides of the outer frame, these floats maintain the structure’s buoyancy and act as obstacles to marine drones and small vessels.
  • Fabricated from thick-walled, impact-resistant, and UV-resistant polyethylene, they are designed to withstand harsh marine environments.
  • Internal reinforcement with a steel channel ensures uniform load distribution at attachment points, mitigating horizontal and vertical stresses from wave action on the frame.
  • The internal cavity is filled with low water absorption polyurethane foam (density: 30 kg/m³), ensuring buoyancy is preserved even if the outer shell is compromised.

Multi-Layered Protection

1

Primary Defense – Floating Elements:

  • Internal steel channel reinforcement distributes loads evenly, reducing stress on the frame and enhancing durability against variable forces and potential collisions.
  • Polyurethane foam filling maintains buoyancy despite external damage, ensuring continuous operational integrity.

2

Secondary Defense – External Frame:

  • The H-beam constructed frame withstands wave impacts, strong winds, and collisions with vessels traveling up to 90 km/h, providing robust protection.

3

Enhanced Security – Anti-Intrusion Measures:

  • An upper metal mesh with 250×250 mm apertures and dual 20 mm diameter cables deters unauthorized access.
  • A submerged nylon mesh with adjustable height and 350×350 mm apertures, supported by a 20 mm diameter rope, extends beneath the floats to prevent underwater intrusions.

Technical Specifications

Continuous 24/7, year-round functionality

Module Dimensions Size
Length 3,760 mm (total length with connectors: 4,275 mm)
Submerged Height 800 mm
Overall Height 2,275 mm
Float Diameter 400 mm
Above-Water Height 1,500 mm
Technical characteristics Value
Tensile Strength Withstands forces up to 45 tons
Wind Resistance Endures gusts up to 30 m/s
Wave Resistance Handles wave heights up to 2.5 m
Operational Temperature Range -30°C to +60°C
Towing Speed 2-4 knots

Section Connectivity

Certified Links:

Utilize A346 (SL - 32) links with a 4:1 safety factor, compliant with DSTU EN 1677-4:2017 standards, ensuring secure inter-module connections.

High-Grade Chains:

Employ Grade 80 load chains, adhering to DSTU EN 818-2:2017 (DIN 5687) standards, made from thermally hardened alloy steel with oil phosphate coating for enhanced durability.

Rigging Shackles:

Incorporate G209, G209 Black, DIN 82101, G2130, or G2150 omega shackles, meeting DSTU EN 13889:2014 standards, to facilitate reliable section coupling.

Rope Clamps:

Apply DIN 1142 or DIN 741 compliant clamps, ensuring secure fastening of ropes and cables.

Compliance and Quality Assurance

Manufactured in accordance with ISO 9001:2015 and ISO 9001:2018 standards, ensuring consistent quality management practices.

Welded components adhere to EN ISO 3834 standards, guaranteeing superior welding quality.

All connecting elements conform to DSTU EN 1677-4:2017 and DSTU EN 13889:2014 standards, ensuring reliability and safety.

Additional information under requests

Constructed from 8 mm diameter rope and 2.2 mm diameter impact-resistant metal wire

Under request Mesh Size Panel Dimensions Breaking Force Energy Absorption Capacity Weight
Surface Netting 250×250 mm and 60×80 mm 1,200×4,000 mm 37 kN 26,000 J 56 kg per panel (3.5 kg/m²)
Underwater Netting 300×300 mm 10,000×4,500 mm 37 kN 26,000 J 56 kg per panel (3.5 kg/m²)
